DF-5/6 HD SERIES-Drag Finishing Machines- Zotec Machinery (Shanghai) Co., Ltd.

Details about products
Application case

Equipment:DF SERIES

Polishing, deburring, rounding or smoothing: We build drag finishing systems to finish any surface quickly and affordably. From small series production to large-scale industrial manufacturing.
Drag finishing process is predestined for the finishing of large or heavy workpieces which cannot be finished in bulk. The workpieces are clamped in rotating holders and dragged through the process media at high speed. The high contact pressure and relative velocity between the workpiece and the process media gives perfect results in a very short time.
In order to obtain a quality equivalent to manual polishing, the right combination of media, tool holders and process parameters are essential. With 20 years’ expertise in the design, construction and the development of efficient processes for our customers all over the world of mass finishing systems.

TECHNICAL SPECIFICATIONS	DF 5/6
Machine dimensions (w x d x h mm)	1565x1155x2550
Working capacity of drum (liters)	114
Maximum immersion depth (mm)	250
Weight (kg)	1100
Voltage (V)	400
Output depending on configuration (kVA)	11
Holder positions	5/6
Maximum workpiece diameter (mm)	250/210

Adapter positions with 3/4/6 head driven holder	DF 5：15/20/30 DF 6： 18/24/36
Maximum workpiece diameter with 3/4/6 head driven holder(mm)	90/85/55
Maximum workpiece weight with 3/4/6 head driven holder(kg)	2,0/1,5/ 0,5

We get you to the finish with μ precision.In series production, reliably repetitive results and costeffectiveness deliver a real competitive edge.

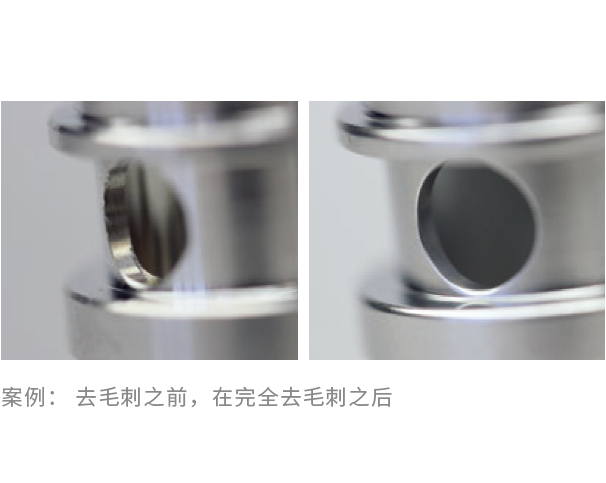

Deburring

Residual burring and swarf from the manufacturing process on the edges and surfaces impair the quality of a workpiece. By choosing the right media and the right process, these blemishes can be removed to give trouble-free downstream finishing and better handling.

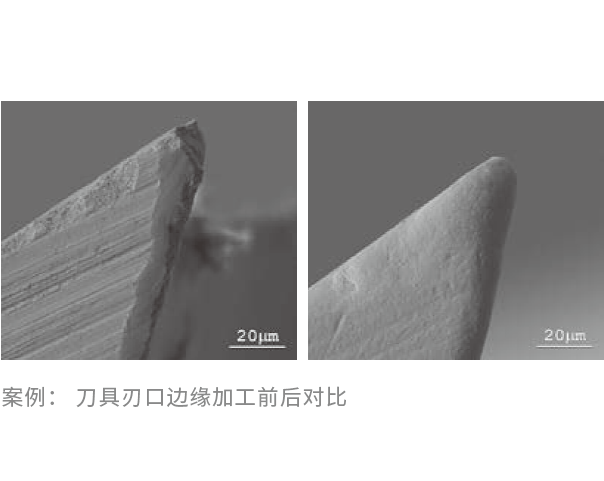

Rounding

Edges are generally rounded in order to improve the reliability of a workpiece. A rounded edge is free of burrs, has no secondary burring and is therefore less susceptible to wear and chipping.

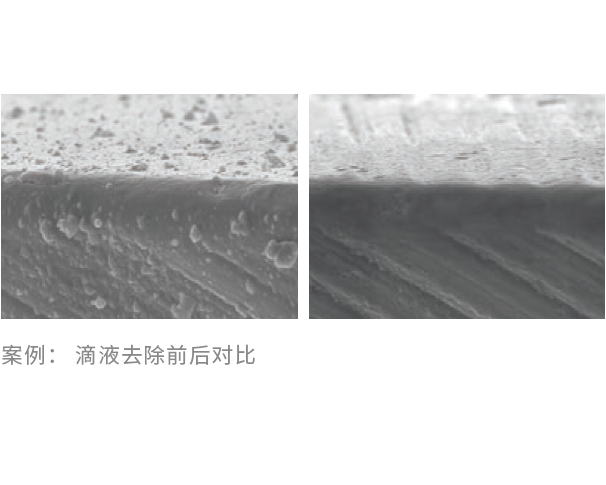

Smoothing

With smoothing, the roughness of the surface is reduced, i.e. the unevenness in the peaks on the surface are removed. The benefits this brings include reduced friction, higher contact ratios and less wear. A further benefit is the removal of droplets after PVD coating.

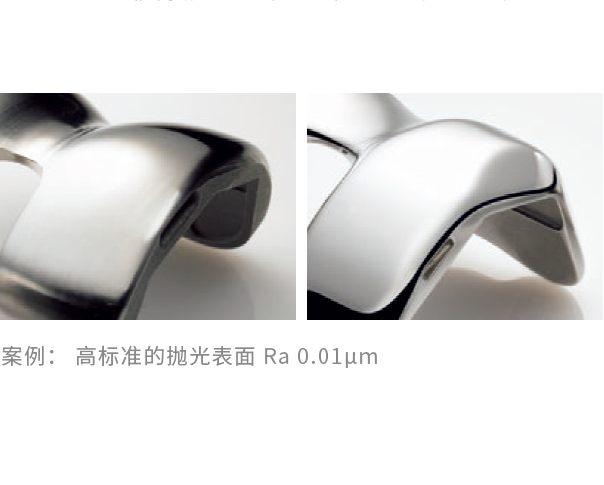

Polishing

In addition to improving the appearance of the workpiece surface, polishing also improves the physical properties of the surface. For example, an absolutely smooth and scratch-free surface increases the life of implants and in the case of cutting tools, a polished chip flute gives higher maximum cutting speeds.

Genuine components for a genuine system

Machine + holder + process + workpiece. The whole is more than the sum of the parts. In order to deliver perfect results, holders and machines must be tested together and carefully coordinated.

Our workpiece holders make a significant contribution to the perfect processing results obtained by the DF series.

ZOTEC’s proprietary tool holders ensure that the workpieces are mounted as quickly and effectively as possible and considerably speed up batch processing. In recent years, we have designed over 100 different types of holder in close cooperation with our customers. In particular, optional features such as laser-operated immersion depth control benefit the absolute compatibility of holder and machine.

Independently driven angled holder

Optionally available with the holder adjustable at an angle for finishing end surfaces and complex geometries.

Rigid holder

Rigid holder with quick tool changer Customized

Quick tool changer

This system enables tools such as drills and burs to be changed in seconds by means of lever.

Customized holders

On request, we can develop special tool holders to meet your specific requirements.
